Vendor: WMD

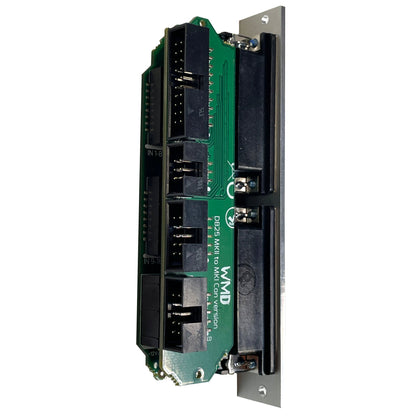

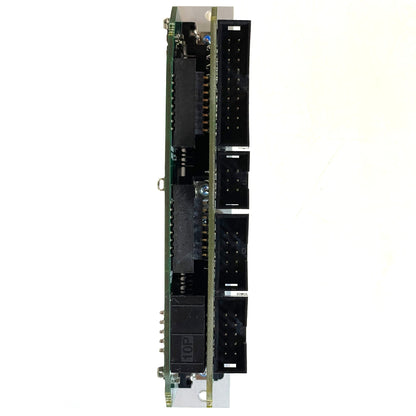

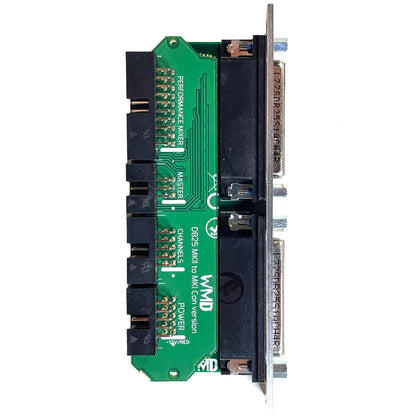

PM DB25 MKII Conversion Board for Use with Original Performance Mixer

SKU: 062-0184
Regular price $40 Sale price $40
Shipping calculated at checkout.
In stock: 9
Description

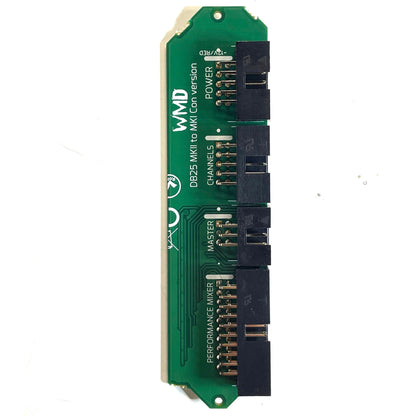

For use with original WMD Performance Mixer, this adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.



    Features
    • Individual balanced outputs for every channel
    • Pre fader outputs for non-destructive recording
    • Post fader outputs for full capture of a performance (PM MKII Only)
    • 16 mono output channels total / 8 stereo pairs
    • Rear connections keep patches clean
    • 2.0mm headers can't be connected to power
    • Compatible with Original PM via Adapter Board (Sold Separately)
    Specifications
    • Power: +12V = 150mA; -12V = 150mA
    • Size: 4HP
    • Depth: 48mm
    • Output Impedance: 600 Ohms
    • Output Drivers: 16x TI DRV135
    • THD+N: <0.1%
    • Nominal Output Level: +4dBu
    • Adapter Board consumes +-25mA
    • 16x DRV135 Output Drivers
    Manual
    Regulatory & Warranty

    RoHS, CE, & WEEE Compliant

    Manufactured with Lead Free Processes

    WMD is committed to reducing excess and single use plastics in its products and packaging.

    WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
