Vendor: WMD

PM DB25 MKII - Balanced Output Pre/Post Fader Expander

SKU: 062-0183
Regular price $299 Sale price $299
Shipping calculated at checkout.
Out of stock
Description

Project Update: 2024/May/16:  Preorders are open for the first batch of DB25 MKII and the conversion board allowing it to work with the original Performance Mixer.

Preorder Information:

Preorders are open for the first production run. I expect to begin shipping production units in September.

International Preorders: I have to enter these manually, since "Markets Pro", Shopify's international shipment service doesn't support preorders. Please contact me through the web form, and I will create a preorder for you.

Additionally, domestic and international dealers will be able to order the PM DB25 MKII, and you can order through them.

I will be shipping orders in the sequence I receive them. I'm doing the final assembly and testing for this first production run here in Denver. Just myself and Paul building them, so it may take a while. If orders are wild, then I'll hire back some of the talent from a prior lifetime.

Preorders will close June 7th 2024, including dealer orders.

Balanced outputs for your Performance Mixer MKII

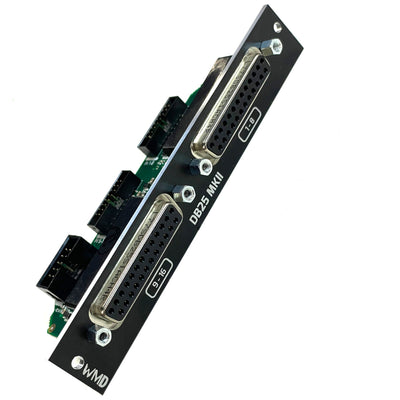

PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

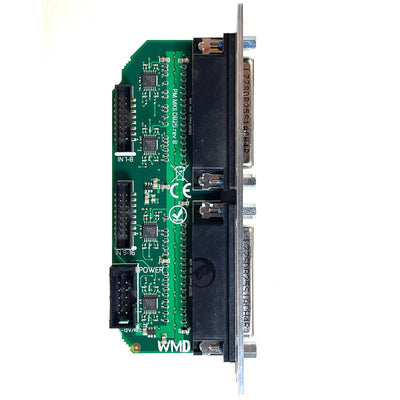

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

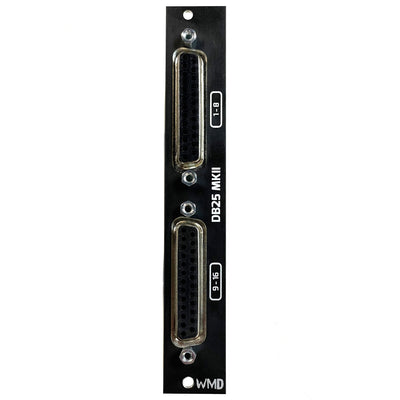

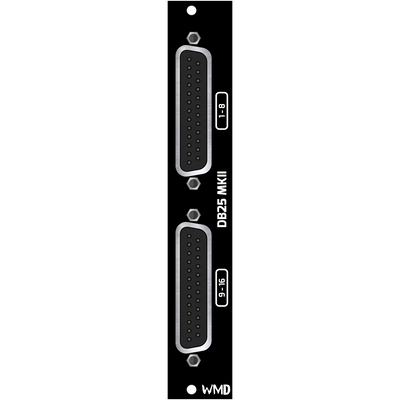

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.



    Features
    • Individual balanced outputs for every channel
    • Pre fader outputs for non-destructive recording
    • Post fader outputs for full capture of a performance (PM MKII Only)
    • 16 mono output channels total / 8 stereo pairs
    • Rear connections keep patches clean
    • 2.0mm headers can't be connected to power
    • Compatible with Original PM via Adapter Board (Sold Separately)
    Specifications
    • Power: +12V = 150mA; -12V = 150mA
    • Size: 4HP
    • Depth: 48mm
    • Output Impedance: 600 Ohms
    • Output Drivers: 16x TI DRV135
    • THD+N: <0.1%
    • Nominal Output Level: +4dBu
    • Adapter Board consumes +-25mA
    • 16x DRV135 Output Drivers
    Manual
    Regulatory & Warranty

    RoHS, CE, & WEEE Compliant

    Manufactured with Lead Free Processes

    WMD is committed to reducing excess and single use plastics in its products and packaging.

    WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
