MSCL

MSCL

$279

Stereo analog compressor in compact 4hp module designed to "glue" your mix together on the master bus. Features DBX "Over Easy" inspired compression with all-in-one comp knob controlling threshold, ratio (1.25:1 to ∞:1), and makeup gain simultaneously. Independent attack (0.15ms-0.1s) and release (0.6ms-4s) controls, ±35dB output gain, three threshold ranges, limit switch for peak limiting, and sidechain input for ducking effects. Perfect for adding professional polish to stereo tracks in minimal rack space.

In stock, ready to ship
?
In Stock: Available and ready to ship.
In Production: Available for pre-order.
Out of Stock: Unavailable for purchase.

Pairs well with
Download Manual

Product Details

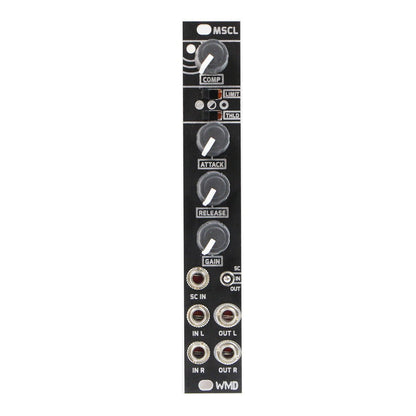

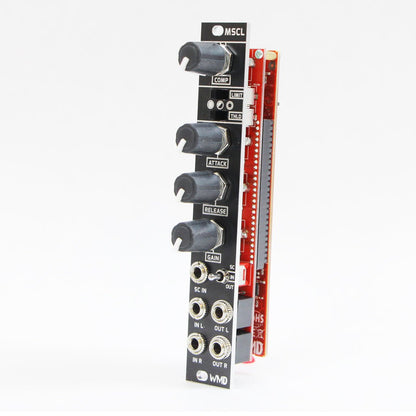

Stereo analog compressor in 4hp

MSCL is a stereo compressor in 4 hp designed for your master bus to help "glue" your mix together. Inspired by the DBX "Over Easy" style compressor, it features independent attack and release knobs, output gain, and an all-in-one knob function for compression which decreases threshold, increases gain and ratio all with one turn.  Limit Switch allows MSCL to act more like a peak limiter. The threshold switch lets you compress signals of different amplitudes. It also features a side chain input for classic ducking sounds on stereo tracks.

CONTROLS

Comp knob: adjusts makeup gain, threshold, ratio simultaneously.

      -  1.25:1 to infinite:1 ratio

Attack Knob: Controls how fast the compressor will react to incoming transients

        Attack speed: 0.15ms/dB to 0.1s/dB

Release Knob: Controls the speed in which the compressor will release.

        Release speed: 0.6ms/dB to 4s/dB

Gain Knob: Adds up to +-35dB on the output

Threshold Switch:  Changes the threshold rainge

       Three ranges (Left to Right) +5dBu, -4dBu, -15dBu

Limit Switch:  Limits the comp knob's makeup gain. Makes the MSCL operate more as a peak limiter.

       Three selections (Left to Right): Inf, 9dB, 3dB

Specifications

  • Width4HP
  • Power+12V = 50mA; -12V = 50mA
  • Depth38mm with cables
  • Input Impedance20k
  • Side Chain Impedance 100k
  • Output Impedance220 ohms
  • RMS and Adaptive Detector Switchable Response
  • Green/Red indicator for Gain/Reduction
  • AC Coupled signal pass
  • DC coupled bypass
  • AC coupled Sidechain
  • 22Vpp signal handling

Features

  • Stereo Compressor in 4 HP

  • Sidechain input for classic ducking sounds

  • Easy and intuitive design

  • Threshold switch lets you compress modular level signals as well as lower level sources

  • Limit switch limits the makeup gain on the comp knob to make compressor act more like a peak limiter

  • One knob style ratio, threshold, gain for on the fly changes

  • Analog signal path, low noise
