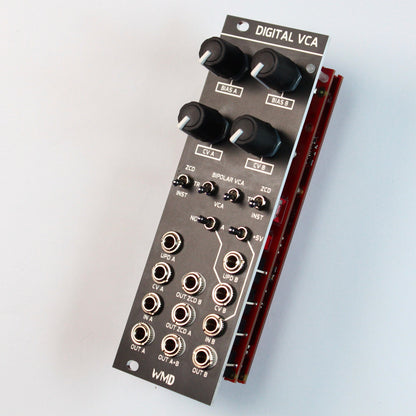

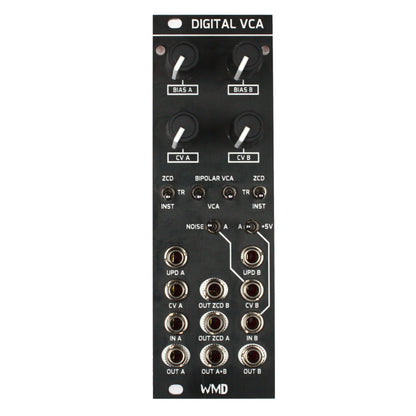

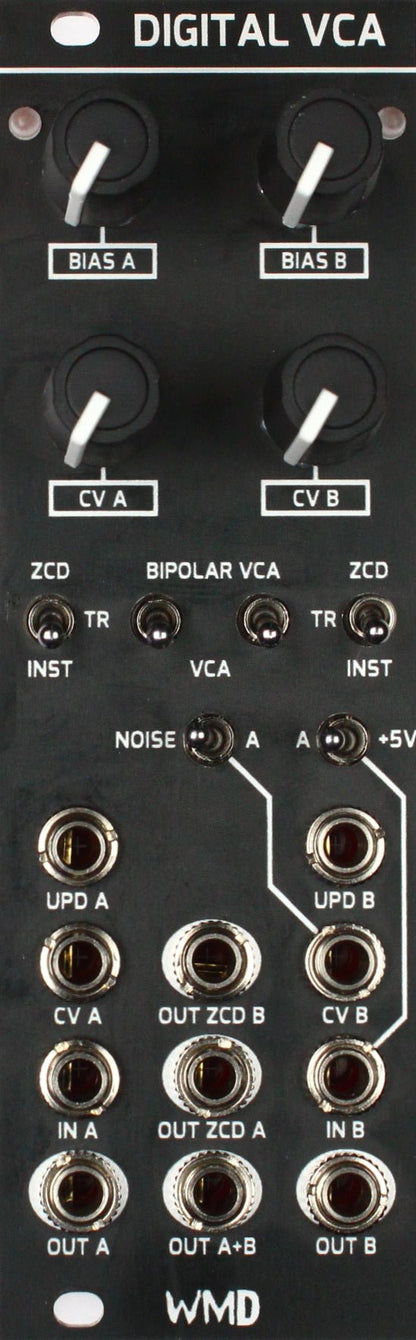

Digital VCA MKIII - Dual Zero-Crossing VCA and Polarizer
Dual zero-crossing VCA with digital control eliminates clicks during amplitude changes. Features trigger mode for precise timing, built-in sample & hold that never droops (0-5V or ±5V), and bipolar polarizer mode for signal inversion and ring modulation. Zero-crossing detection creates unique waveshapes. Perfect for any Eurorack system. Limited edition of 410 units - final version, no future production planned. Essential utility module combining VCA, S&H, and polarizer functions in one compact design.
Pairs well with

Digital VCA MKIII - Dual Zero-Crossing VCA and Polarizer
Product Details
I've done several designs of this circuit over the years, the first one had no knobs, the second was too small, the MKIII is finally how this circuit should be packaged. This module does some really cool stuff and is super useful in any system.
The Digital VCA lets signal through like a normal VCA, but the CV and attenuation level is controlled digitally. This lets us do things like wait until there is a zero crossing to change the amplitude, resulting in clickless amplitude changes.
The Trigger mode causes the VCA to only update when a trigger is received. The addition of a noise circuit for each side let us do a very quick and easy sample and hold that never droops. With no input, 5V is normaled to the attenuator, so you get a 0-5V sample and hold. In Bipolar mode, you can get -5 to +5V.
Both sides have bipolar VCA mode (polarizer), which lets them invert the signal when negative CV comes in. Also known as ring modulation. With the zero crossing detector, this can produce some super wild wave shapes.
Limited run of 410 units for Eurorack Modular Synthesizer systems. I won't be making more or doing another version in the future.
Specifications
- Power+65mA, -45mA
- Width8HP

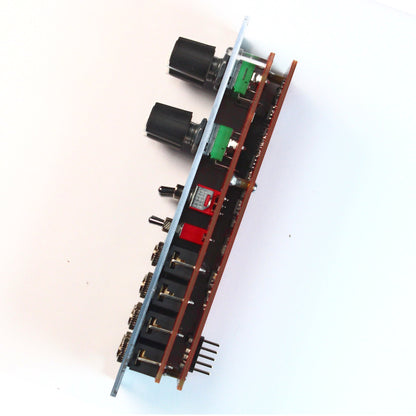

- Depth35mm with cables
- HeightEurorack 3U (128.5mm)

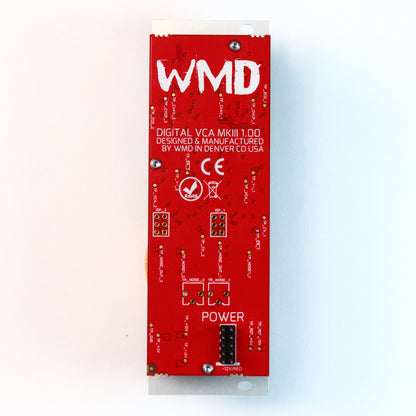

- Board Height Behind Panel112mm
- CV/Signal Input Impedance100k
- Output Impedance1k
- UPD in 3.3V Threshold Schmitt Trigger
- ZCD produces 15µs 5V pulse
- 5V CV to fully open VCA
- Linear VCA response
- 20Vpp signal handling
Features
-
Dual VCA Design
-
Unipolar or Bipolar Operation
-
DC Coupled Analog Signal Path
-
Low Distortion / Low Noise
-
VCA Closes Completely
-
Zero Crossing Detector Mode
-
Trigger Mode
-
Two Independent Noise Sources
-
8 bit CV resolution
-
Great for Fast Envelopes and Sine Bass Sounds
