Vendor: WMD
Regular price $389 Sale price $389
Shipping calculated at checkout.
In stock: 4
Description

January 15th 2024: I've got a few of these to fix and they'll be available. Please join the waiting list with the button to the side to be notified when they're ready for purchase. Thank you!

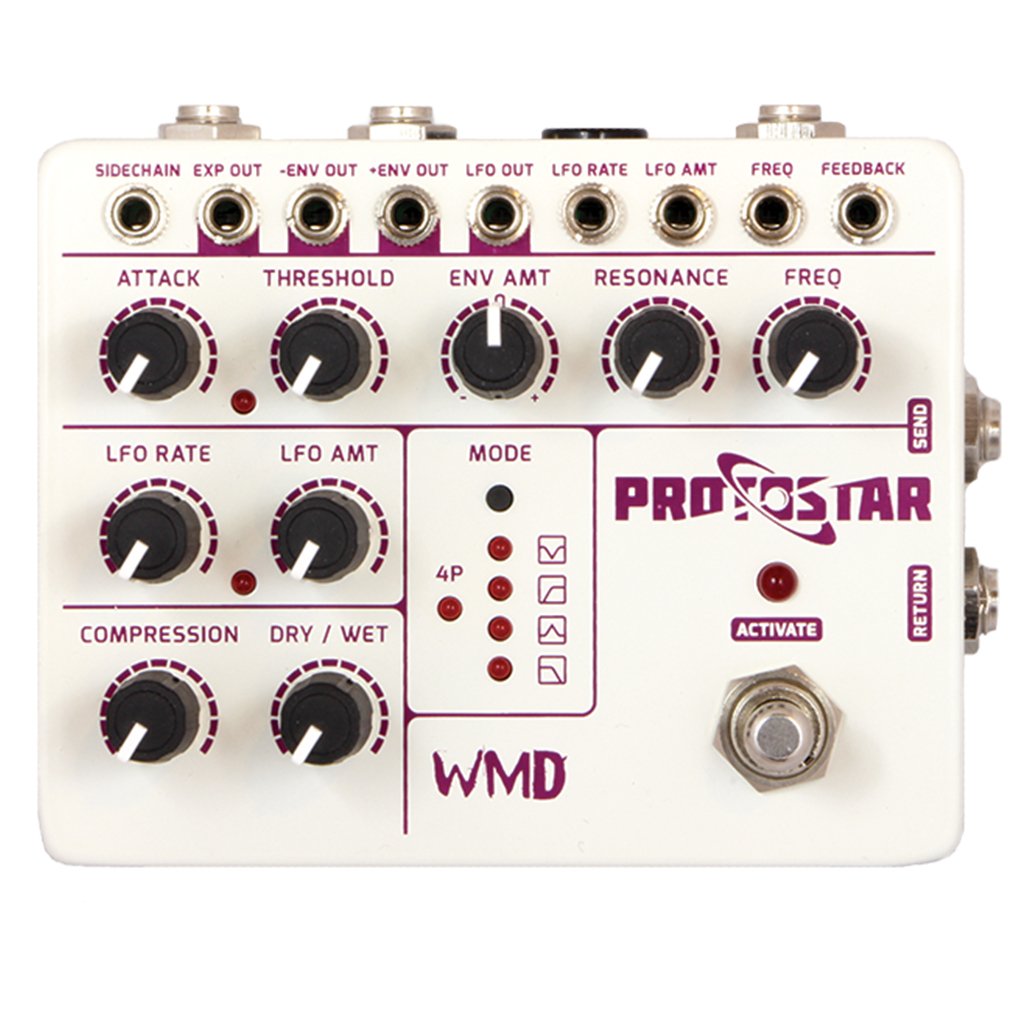

Harmonic density engine

The Protostar is the evolution of the Super FatMan envelope filter with even more pro level features.  Built in LFO, 4 filter modes, full CV patch bay, and expression/CB input, this is the most powerful/versatile envelope filter on the planet.  Also includes an end of chain compressor and dry wet mix for parallel filtering/compression effects!

Controls

KNOBS

Attack - How fast the envelope will react
to the incoming signal. Controls both
attack and release.

Threshold - How sensitive the envelope is to the
incoming signal.

Env Amt - Attenuverter that controls how much
the envelope will affect the frequency of
the filter, either negatively or positively.

Resonance - Synonomous with feedback or Q,
this is a boost of the frequencies around the
frequency cutoff.

Freq - Also known as cutoff, this knob’s
position dictates the resting place of the
frequency cutoff.

LFO Rate - Make the LFO go faster or slower
with this knob.

LFO Amt - How much the LFO will affect the
frequency cutoff.

Compression - End of chain compressor squashes
the wet signal to suppress unwanted honks, and
resonant oddities.

Dry / Wet - Amount of unaffected vs. affected signal
coming through the output.

Sidechain - Direct input to the envelope follower.
Normalled to the input, use this to have the
envelope follow an external source.

Exp Out - Output for the expression pedal
input. Exp isn’t connected to any control
internally and must be patched.

- Env Out - Always sending +5V until the
envelope is triggered, bringing the voltage
down to 0V and back.

+ Env Out - Sends a CV signal following the
envelope. Signal is 0V to +5V.

LFO Out - Constantly sends the triangle
wave LFO CV signal, reacts to LFO rate knob.

LFO Rate - CV input for control over LFO rate.
Sensitivity adjustable with internal trim pot.

LFO Amt - CV input for control over LFO amt.

Freq - CV Input for control over cutoff frequency.

Feedback - CV input for control over resonance.

Expression Input (back panel) - Plug a TRS
cable from any expression pedal into this, patch
the exp out to what you want to contol, and
express yourself.

    Features
    Specifications
    • Power: 9VDC, Boss Style Center Negative, 400mA. Do not exceed 9V.
    • 1A supply recommended.
    • Internal Bipolar 9V power supply.
    • Dimensions: 4.9" x 3.9" x 2.4"
    • 0-5V nominal CV range. All inputs/outputs protected.
    • LFO CV sensitivity and Compressor Gain adjustable internally.
    • Relay true Bypass. Soft Touch Switch
    • Expression Pedal: 10k - 1M pot. TRS connection.
    • Patch Points - Mono or Stereo cable. Signals are mono.
    Manual
    Regulatory & Warranty

    RoHS, CE, & WEEE Compliant

    Manufactured with Lead Free Processes

    WMD is committed to reducing excess and single use plastics in its products and packaging.

    WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
