Description

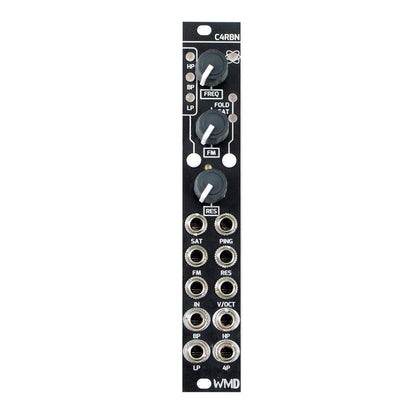

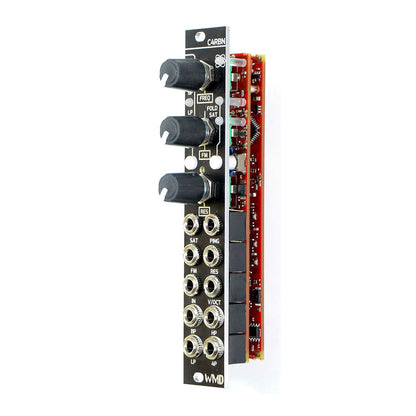

C4RBN (pronounced "Carbon") is a 4/2-Pole State Variable Filter with input saturation, output wavefolding, and more.  It features a wide range of character from nice and clean filter sounds to screaming, squelchy, acidic mayhem.

C4RBN builds on WMD’s history with state-variable filters adding interface refinements and improved warm environment stability for live performance and beyond. A novel input saturation circuit plus the output wavefolder from WMD’s classic SYNCHRODYNE filter pair together to push the timbral flexibility to the next level. C4RBN is the building block to life in your eurorack.

Features
  • 2 Pole Outputs for - High Pass, Low Pass, and Bandpass
  • 4 Pole selectable output - HP, LP, BP
  • FM Attenuverter for external envelope control
  • Input Saturation - 3 button settings, continuous CV input
  • Ping circuit emulates vactrol response
  • Output wavefolder that screams!
  • Resonance with self oscillation
  • Temperature compensated 1V/Oct tracking
  • Performance focused control scheme allows for on-the-fly changes of filter types with intention
Specifications
  • Size: 4hp

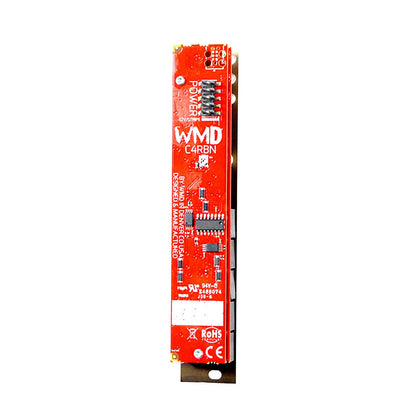

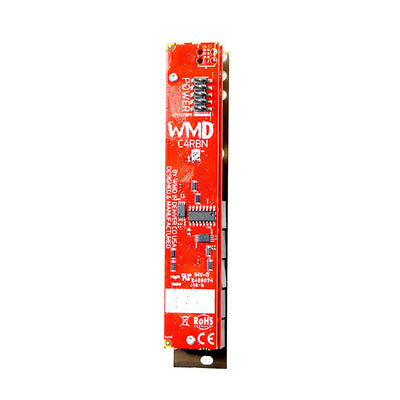

  • PCB height: 112mm
  • Depth: 38mm (with cables)
  • Power: +92mA, -82mA
  • Audio Input: 100k ohm impedance
  • 20Vpp range
  • V/Oct Input: 82k ohm impedance
  • Temperature Compensated
  • CV Inputs: >100k ohm impedance
  • Filter Outputs: 1k ohm impedance
Manual
Regulatory & Warranty

RoHS, CE, & WEEE Compliant

Manufactured with Lead Free Processes

WMD is committed to reducing excess and single use plastics in its products and packaging.

WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
