Description

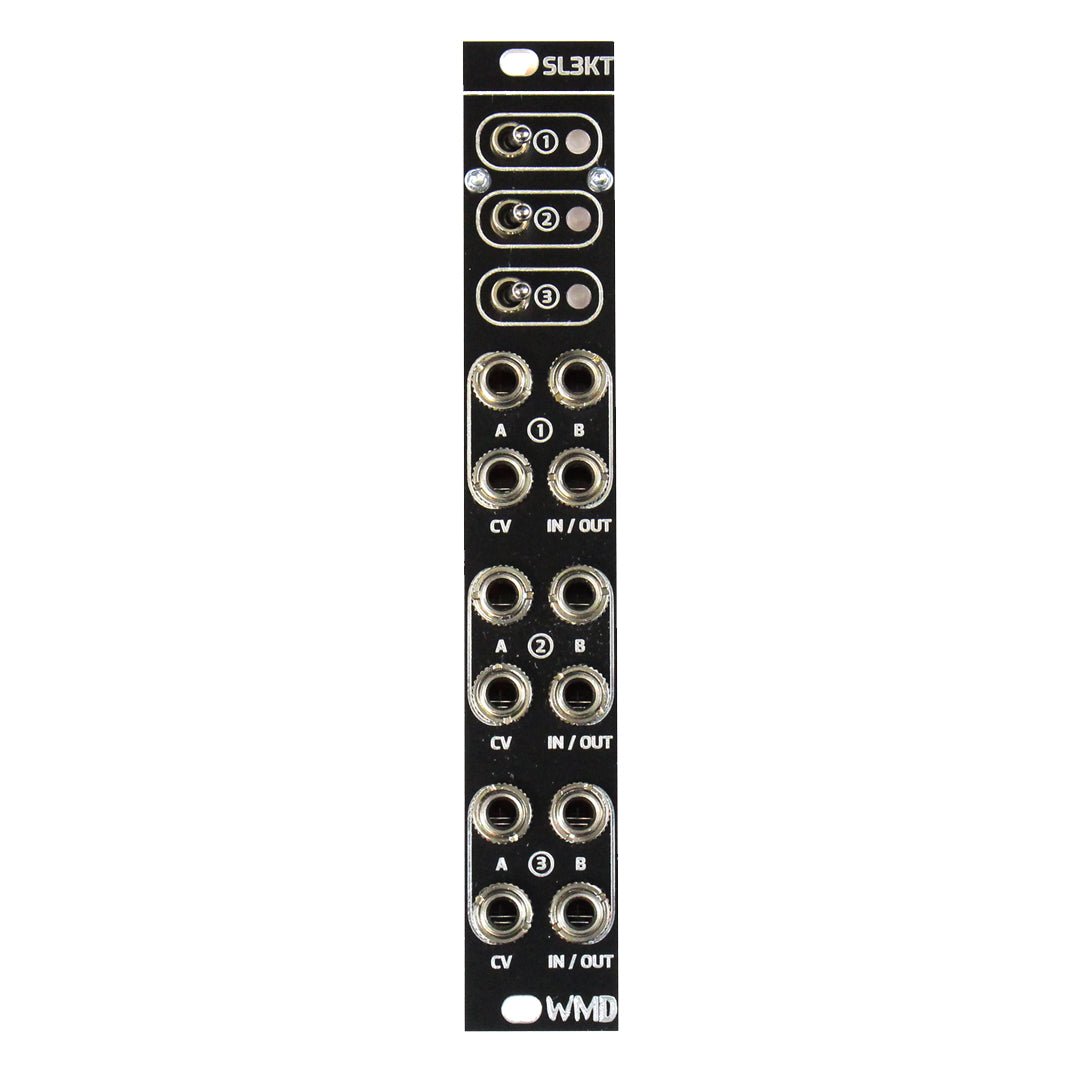

SL3KT (pronounced "Select")  is a simple three-channel switch module for Eurorack Modular Synthesizers.

Three independent, two-way switches allow for users two select between different sources or destinations of both CV and Audio Signals. Useful for many tasks in a Eurorack system such as sequence selecting, CV selecting, boolean logic operations, group switching, group routing, gating, waveform mixing, and so much more!

Features
  • 3 independent switches
  • Perfect for routing CV, 1V/Oct, Gates, and Audio to different destinations.
  • Bi-Direction signal path allow you to switch between two sources or two destinations.
  • Cascaded normalling of the switch position allows users to switch all channels with one switch or CV input.
  • Break the normal by plugging into next channel.
  • CV input for each channel lets you move the switch remotely with a gate CV signal.
  • Set up complex patches with multiple functions and creating "presets" that are just a switch away.
Specifications
  • Width: 4hp
  • Depth: 30mm(with cables)
  • Power: +10mA, -10mA
  • All CV Inputs: 100k ohm impedance
  • A/B/IN/OUT: 20 ohm impedance Bi-directional
  • Negligible drop on 1V/Oct signals.
Manual
Regulatory & Warranty

RoHS, CE, & WEEE Compliant

Manufactured with Lead Free Processes

WMD is committed to reducing excess and single use plastics in its products and packaging.

WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
