Vendor: WMD
Regular price $329 Sale price $329
Shipping calculated at checkout.
Out of stock
Description

"We're in an Octopus' Garden".

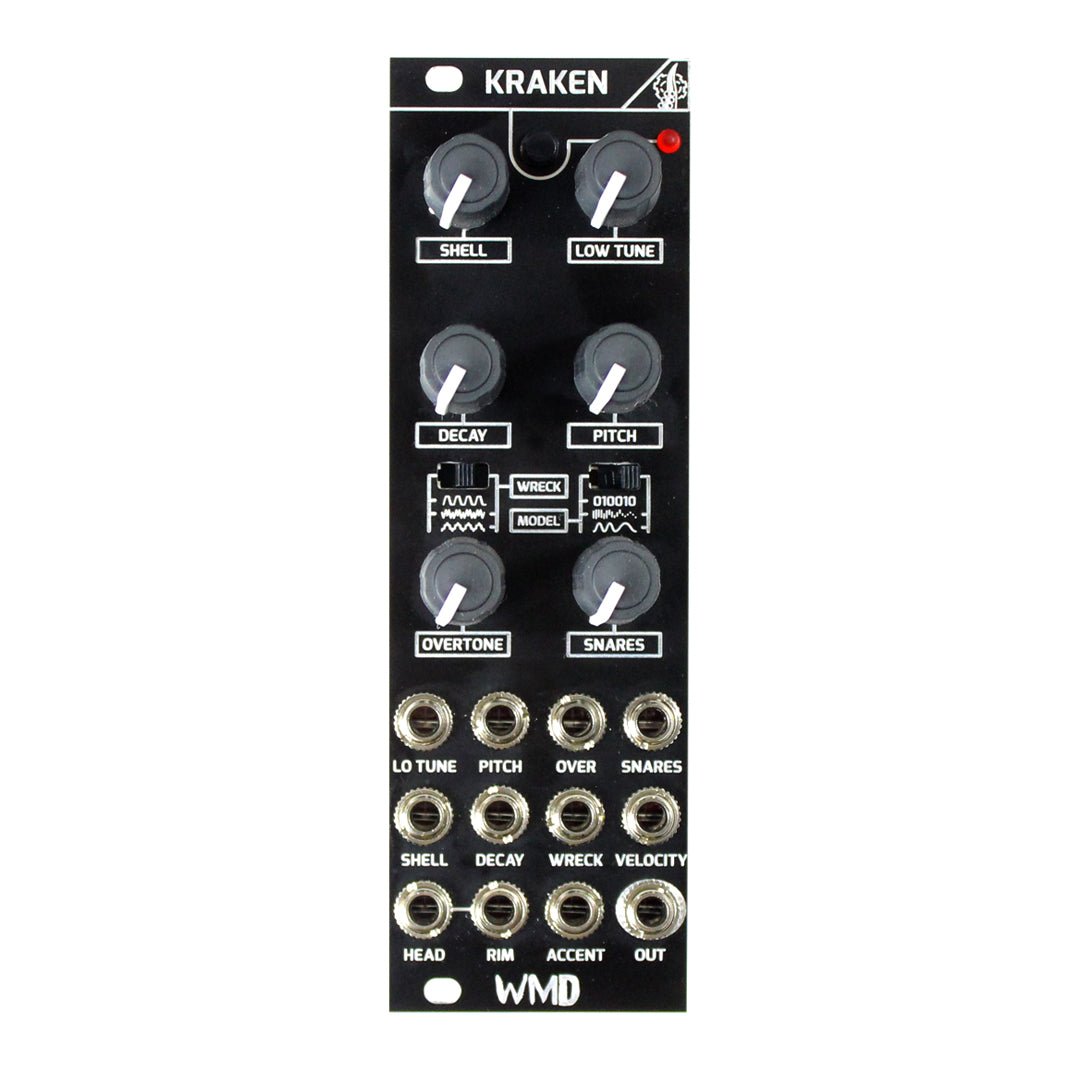

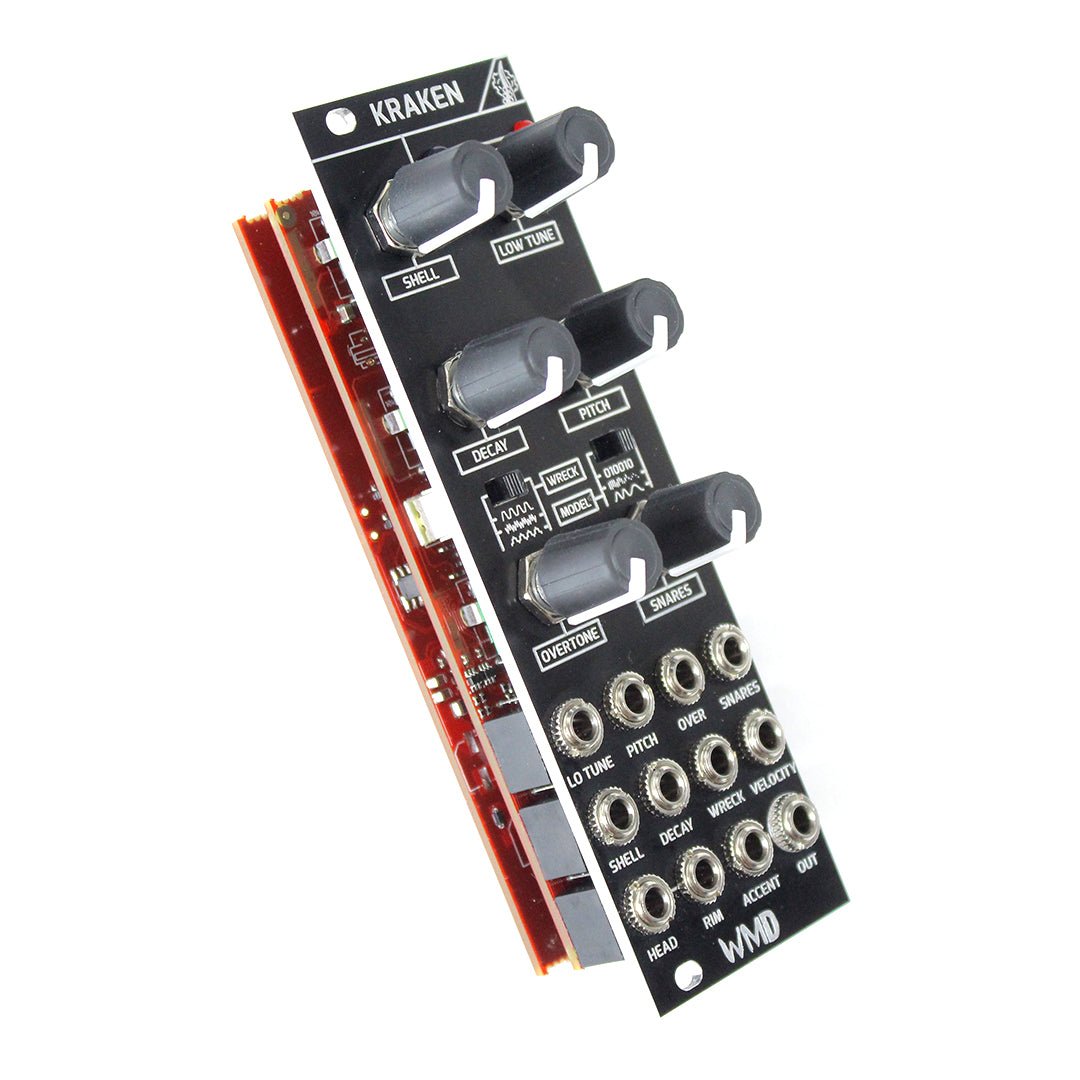

Kraken is a physical modeling snare drum module for eurorack modular synthesizers.

No samples, 100% digital synthesis with the ability to make realistic snare drums of all sizes, shapes, materials, and colors.  Similar to Crucible, Kraken uses a network of classic synthesis blocks like delay, digital filters, and noise to create a very unique resonator.

"Crack-in" to the snare drum sound you're into most by adjusting parameters that corelate to physical drum properties such as shell type and size, head tightness, amount of overtone, and how tight and bright the snares sound.

You like snare samples? Great!  Although Kraken does not use any recordings to generate sound, you can get a perfectly repeatable snare sound, similar to a sampler by using digital noise to generate the sound of the "snares".

Want your snare to sound more realistic?  Try analog noise to imitate the subtle difference of a drummer hitting the snare slightly different on each hit.

Perfect Pitch... kind-of.  Optional pitch shifter on the output widens the sonic palette as well as the frequency range, while imparting a unique character of it's own, reminiscent of old school samplers and pitch shifter pedals.  Pitch knob and CV input take control of the pitch shifter when in this mode.

Wreck the ship with the Wreck switch and CV input.  Three different distortion characters push the envelope that much further with an analog style gained up hard clipping, wavefolding, and bit depth reduction.  At some shell settings, gain gets loud  like running a snare mic through a distortion pedal. The wave folder sounds like over-the-top compression with lots of high frequency content,.  The bit depth reduction setting lets you dial in a desired amount of "vintage" digital artifacts.  Moving the switch to these different modes is only a preview.  Use the Wreck CV input for the most control and variety in sound.

Kraken is begging to be sequenced.  Use the Head, Rim, and Accent gate inputs to start your basic rhythm of hits, sidesticks, rimshots and accented sounds.  Sequence the Velocity input with a variable CV source to bring the pattern to life and put the drummer behind the kit.

Pair with Crater, Fracture, Chimera, and Crucible for an inspiringly flavorful set of drums for your Eurorack Modular Synthesizer.

PDF MANUAL









Features
  • No samples, 100% digital synthesis
  • Built-in distortions
  • Digital and analog noise source
  • Pitch Shifter
  • Wide range of sounds
  • Two trigger inputs - Hit both simultaneously for a realistic "rimshot" sound.
Specifications
  • Size: 8hp Depth: 38mm (with cables)
  • Power: +61mA, -17mA
  • All CV Inputs: 100k ohm impedance
  • CV inputs sum with knobs
  • Full sweep is 5V
  • Gate Inputs: 100k impedance 2V threshold Schmitt Trigger
  • Audio Output: 470 ohm impedance
  • 20Vpp range
  • 4.0ms latency max
Manual
Regulatory & Warranty

RoHS, CE, & WEEE Compliant

Manufactured with Lead Free Processes

WMD is committed to reducing excess and single use plastics in its products and packaging.

WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
