Description

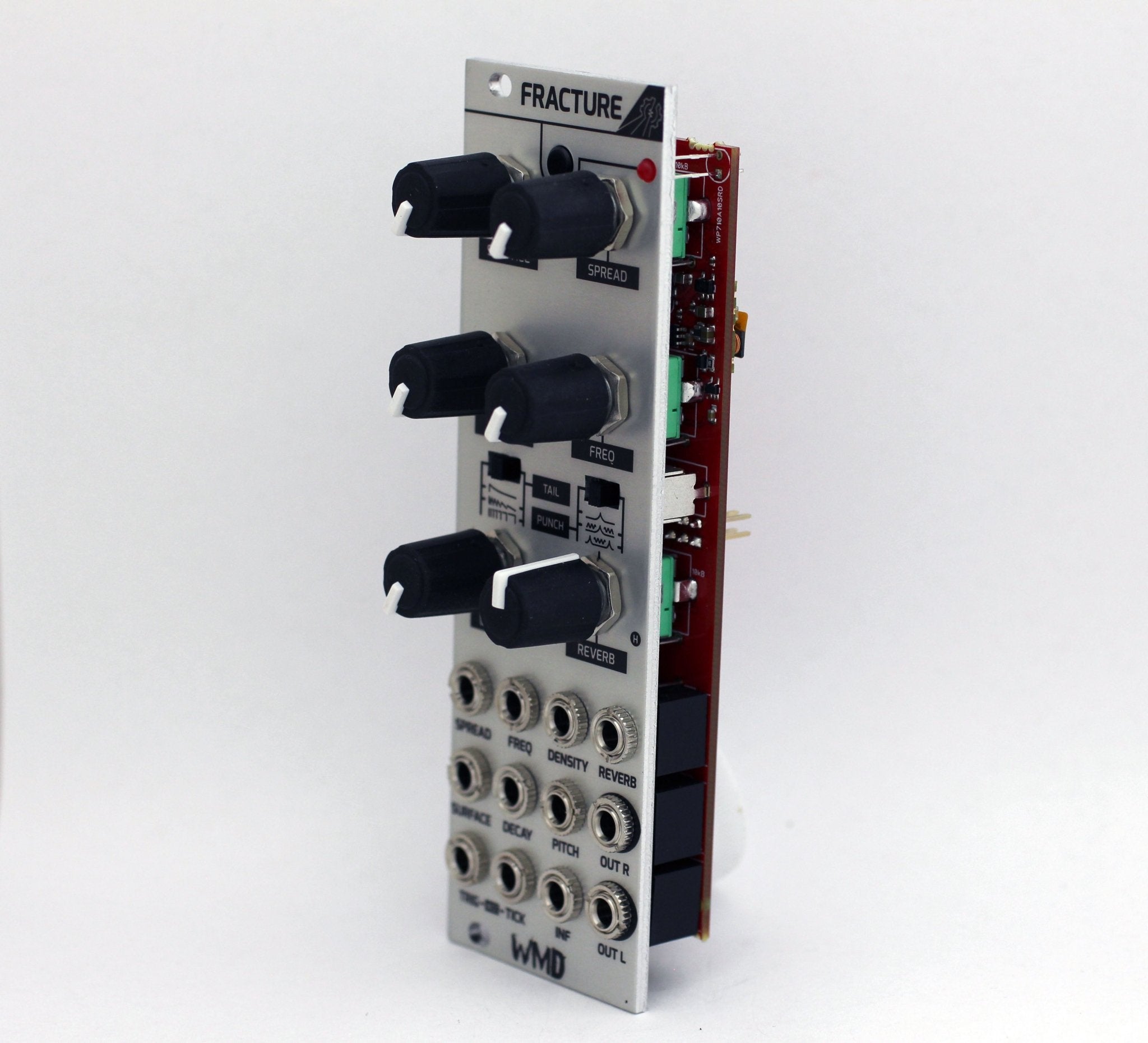

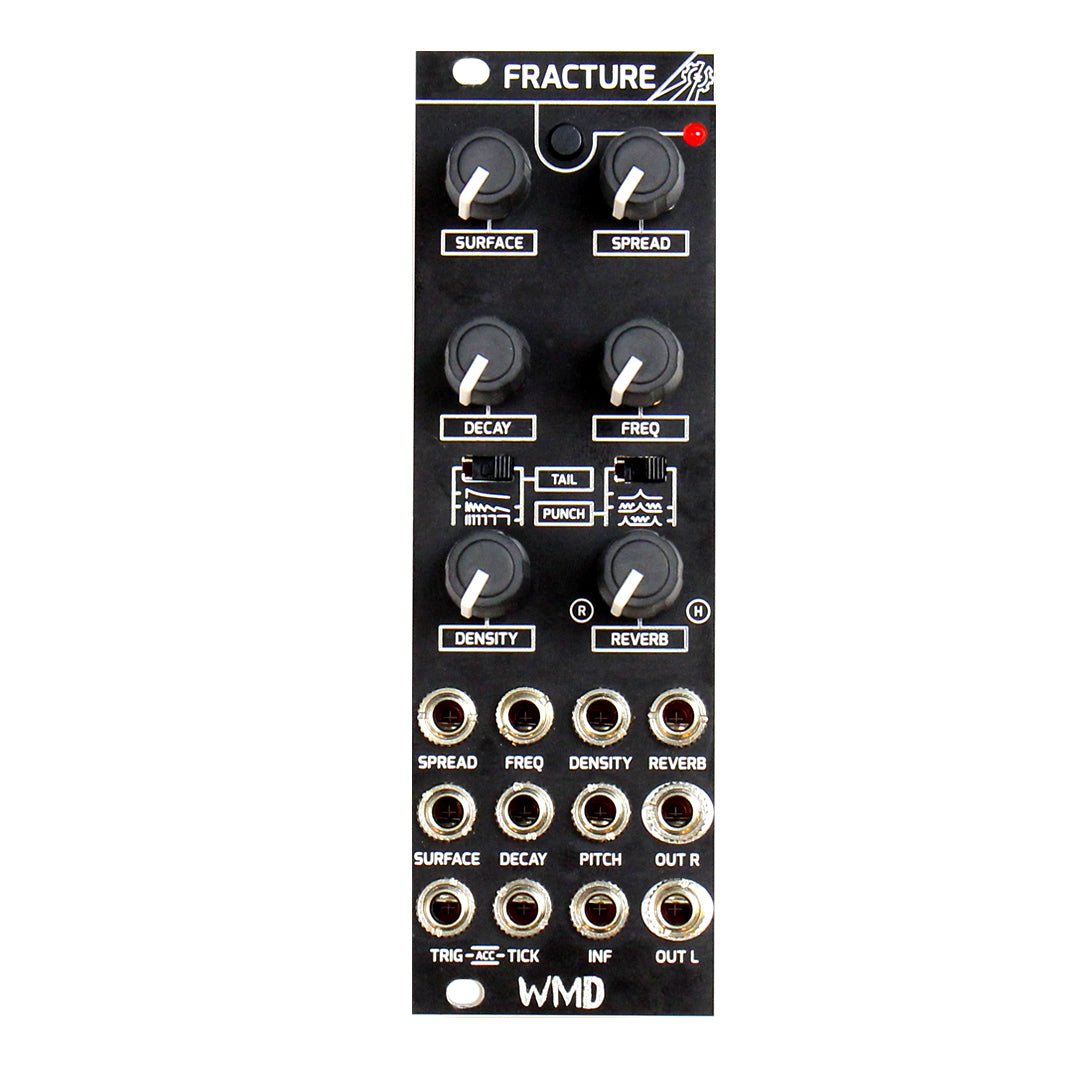

2024/October Update -- New production in stock! These have the original milled/engraved aluminum panels.

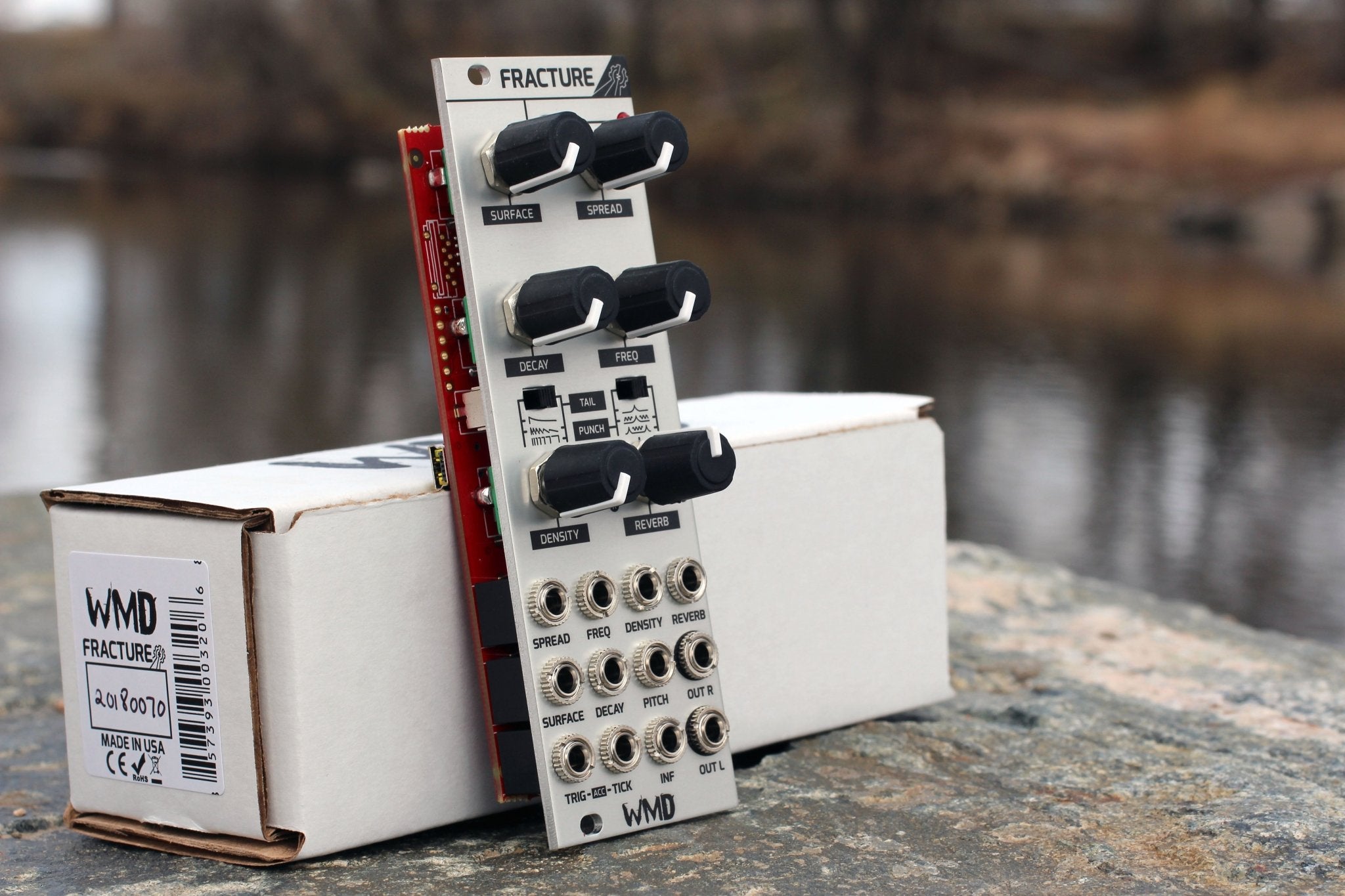

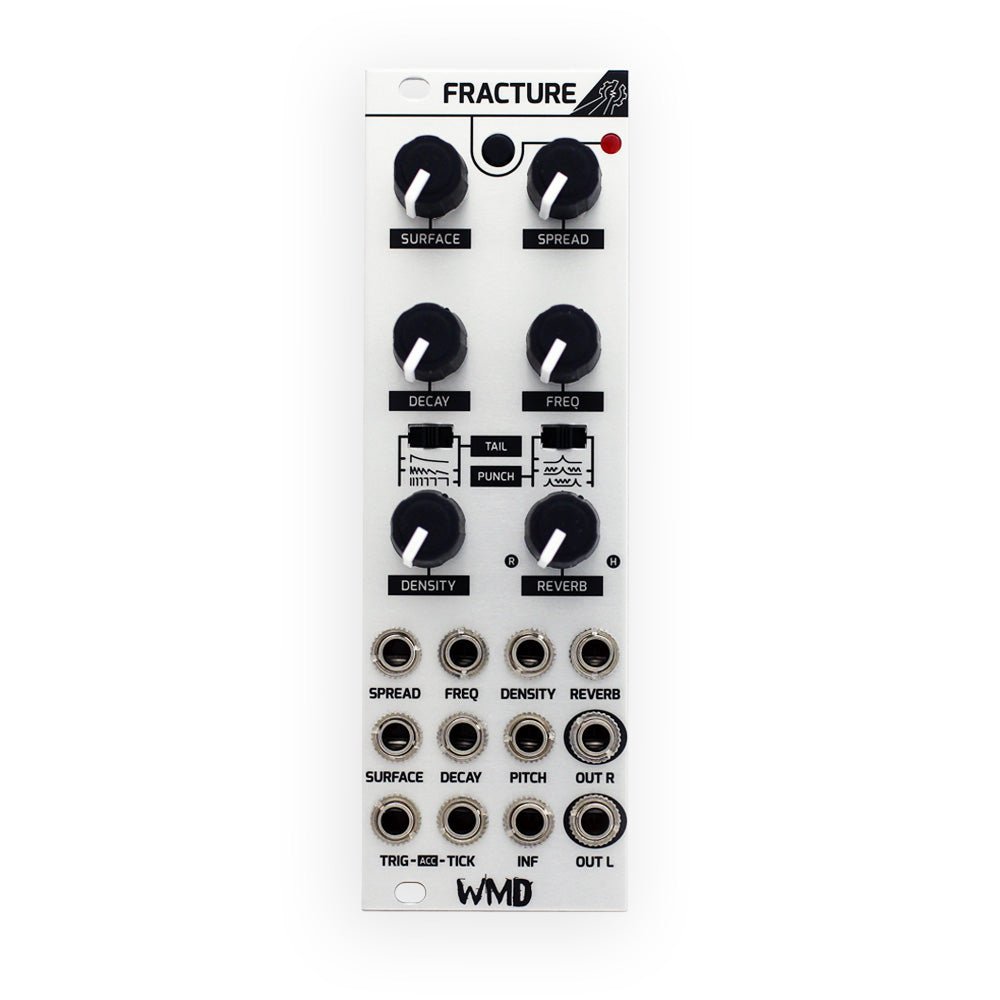

Multi-particle crowd percussion synthesizer

Originally inspired by audience applause, hip-hop samples, and classic drum machines, Fracture is a multi-particle percussion synthesizer that applies concepts from classic analogue clap circuits to granular synthesis methods.

It all starts from proprietary micro-samples we recorded specifically for this purpose and ends with an engine built to suit these samples.
Unlike our other percussion module, Chimera, which uses impulse rich samples as it’s tonal center, Fracture uses single impulse samples like claps, snaps, ping pong balls, opening a beer can, and many more. It then plays a group of similar samples back in a psuedo random order for unique hits. Density, Decay, and Tail affect tone and how “tight” your virtual clappers are to playing together.

Our goal was to design a clap percussion module covering the range from classic drum machine claps all the way to full audience applause. We ended up with a module that covers a huge range of timbres beyond claps. We hope this engine provides you with the tools to intuitively create wild percussion sounds that bring your system to life in a new way.


Features
  • Stereo output
  • Control over "how many people" and " how tight" they sound together
  • Built in Hall and Room reverb
  • Two Trigger inputs for different types of sounds
  • 3 Filter types, 3 Envelope types
  • Free running, Voltage Controlled "applause" capability
  • CV over all parameters
Specifications
  • Size: 8hp Depth: 38mm (with cables)
  • Power: +61mA, -17mA
  • All CV Inputs: 100k ohm impedance
  • CV inputs sum with knobs
  • Full sweep is 5V
  • Gate Inputs: 100k impedance 2V threshold Schmitt Trigger
  • Audio Outputs: 470 ohm impedance
  • 20Vpp range
  • 1ms latency max
Manual
Regulatory & Warranty

RoHS, CE, & WEEE Compliant

Manufactured with Lead Free Processes

WMD is committed to reducing excess and single use plastics in its products and packaging.

WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
