Description

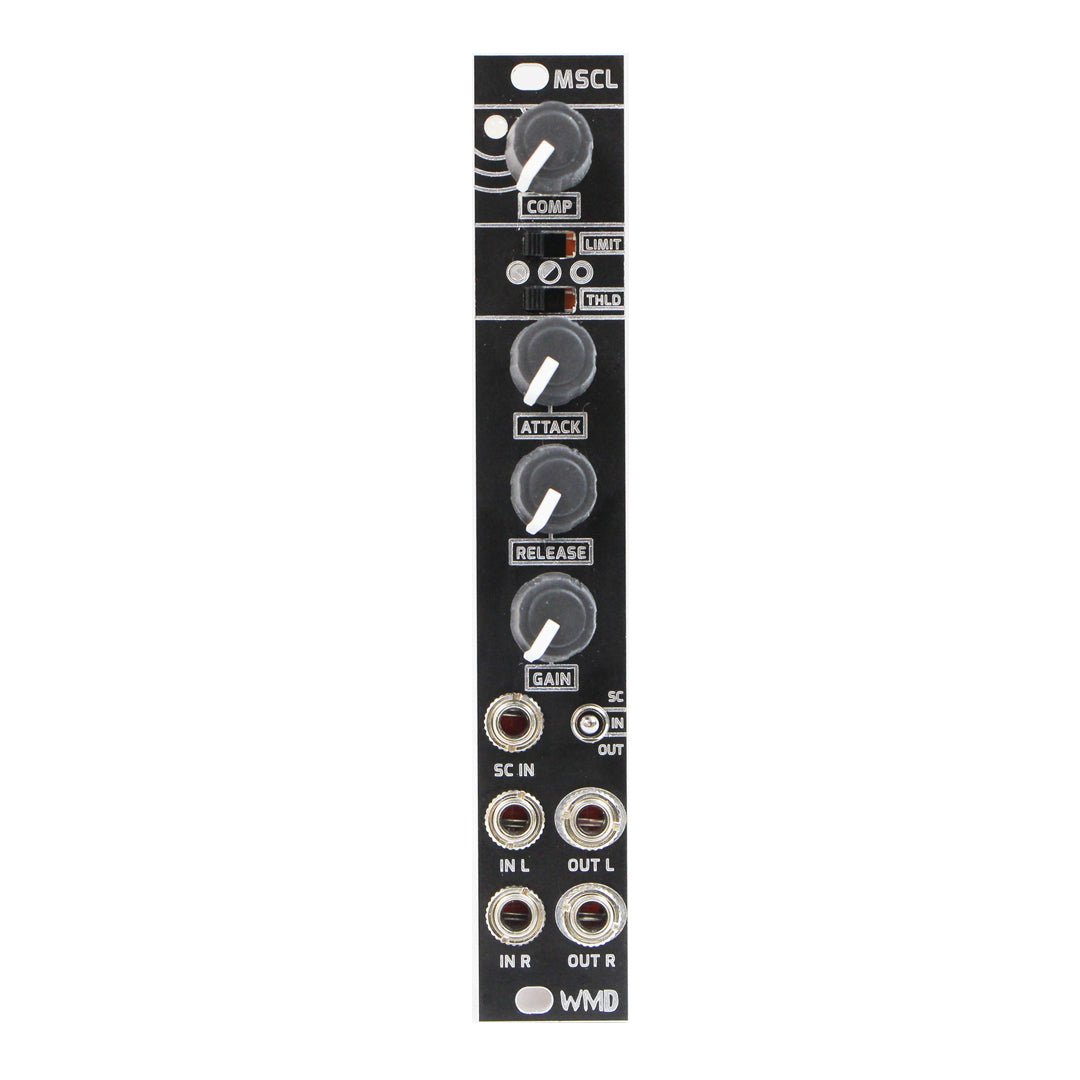

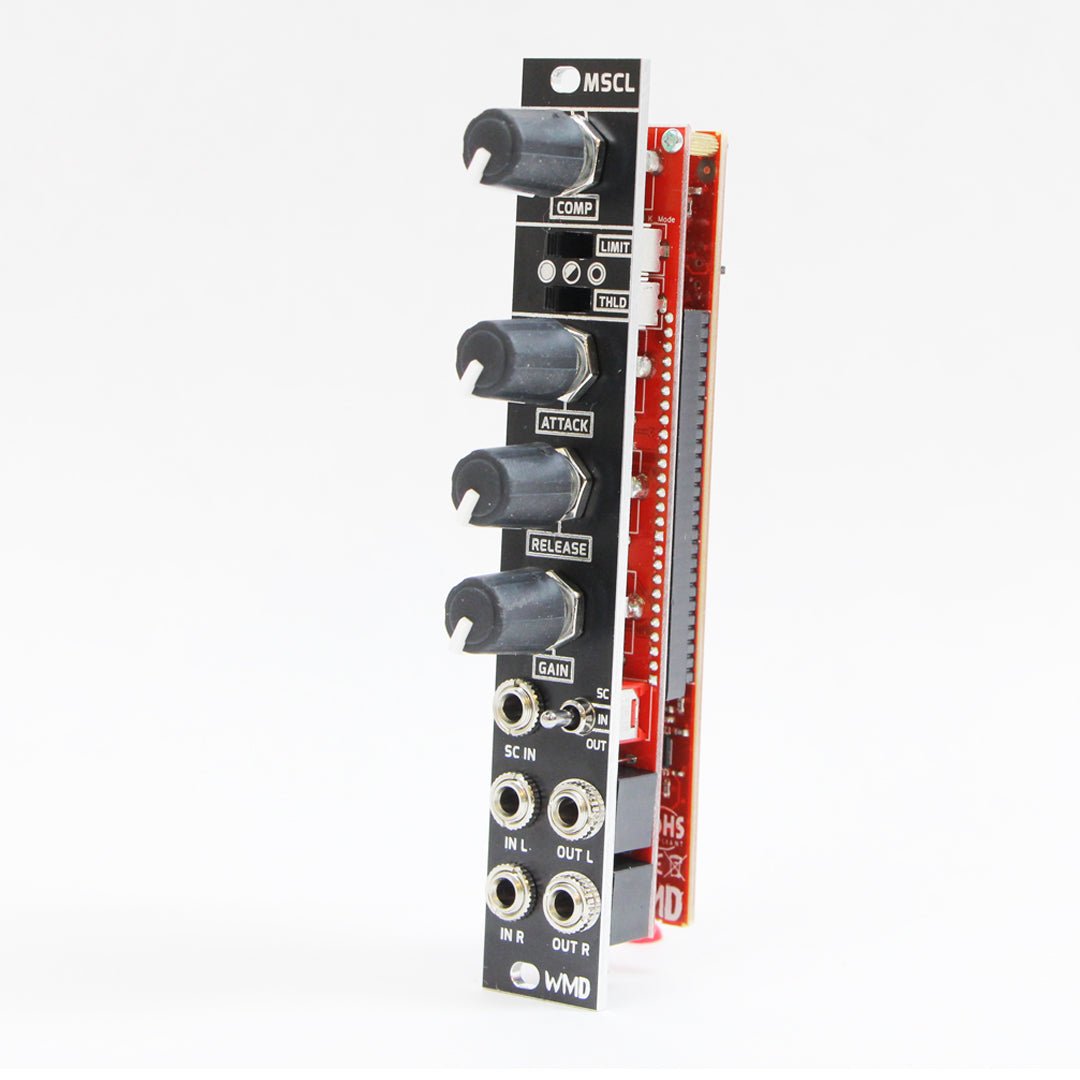

Stereo analog compressor in 4hp

MSCL is a stereo compressor in 4 hp designed for your master bus to help "glue" your mix together. Inspired by the DBX "Over Easy" style compressor, it features independent attack and release knobs, output gain, and an all-in-one knob function for compression which decreases threshold, increases gain and ratio all with one turn.  Limit Switch allows MSCL to act more like a peak limiter. The threshold switch lets you compress signals of different amplitudes. It also features a side chain input for classic ducking sounds on stereo tracks.

CONTROLS

Comp knob: adjusts makeup gain, threshold, ratio simultaneously.

      -  1.25:1 to infinite:1 ratio

Attack Knob: Controls how fast the compressor will react to incoming transients

        Attack speed: 0.15ms/dB to 0.1s/dB

Release Knob: Controls the speed in which the compressor will release.

        Release speed: 0.6ms/dB to 4s/dB

Gain Knob: Adds up to +-35dB on the output

Threshold Switch:  Changes the threshold rainge

       Three ranges (Left to Right) +5dBu, -4dBu, -15dBu

Limit Switch:  Limits the comp knob's makeup gain. Makes the MSCL operate more as a peak limiter.

       Three selections (Left to Right): Inf, 9dB, 3dB

Features
  • Stereo Compressor in 4 HP
  • Sidechain input for classic ducking sounds
  • Easy and intuitive design
  • Threshold switch lets you compress modular level signals as well as lower level sources
  • Limit switch limits the makeup gain on the comp knob to make compressor act more like a peak limiter
  • One knob style ratio, threshold, gain for on the fly changes
  • Analog signal path, low noise
Specifications
  • Power: +12V = 50mA; -12V = 50mA
  • Size: 4HP
  • Depth: 38mm with cables
  • Input Impedance: 20k
  • Side Chain Impedance 100k
  • Output Impedance: 220 ohms
  • RMS and Adaptive Detector Switchable Response
  • Green/Red indicator for Gain/Reduction
  • AC Coupled signal pass
  • DC coupled bypass
  • AC coupled Sidechain
  • 22Vpp signal handling
Manual
Regulatory & Warranty

RoHS, CE, & WEEE Compliant

Manufactured with Lead Free Processes

WMD is committed to reducing excess and single use plastics in its products and packaging.

WMD warranties our products for 12 months from purchase date. Please contact us if you have issues.
